Three-phase TRT
Industrial dividing transformers are intended:
for transformation of a TN-S network to an IT network (mode of the isolated neutral) with continuous monitoring of isolation of a network and parameters transformer.
- railway transport;
- mobile complexes at food from stationary networks;
- chemical industry;
- mining industry;
- power supply of computer systems in the conditions of a heavy electromagnetic situation;
- local protection of processing equipment and control systems.
Three-phase dividing transformers. Protection degree IP 20.
U input - 380/220V, 50 Hz. U output - 380/220V +/-3%, 50 Hz. (U output - 220/127V +/-3%, 50 Hz)
Three-phase dividing transformers. Protection degree IP 54.
U input - 380/220V, 50 Hz. U output - 380/220V +/-3%, 50 Hz. (U output - 220/127V +/-3%, 50 Hz)
U input - 380/220V, 50 Hz. U output - 380/220V +/-3%, 50 Hz. (U output - 220/127V +/-3%, 50 Hz)
| Model |
P nominal, VА |
I nominal, A |
Weught, kg |
Dimension WхHхD, mm |
| ТRТ – 9000М-380 (220) |
9000 |
13,6 (23,5) |
120 |
600х1300х400 floor |
| ТRТ – 10000М-380 (220) |
10000 |
15,0 (26,0) |
120 |
600х1300х400 floor |
| ТRТ – 12000М-380 (220) |
12000 |
18,0 (31,5) |
150 |
600х1300х400 floor |
| ТRТ – 15000М-380 (220) |
15000 |
22,5 (39,0) |
170 |
600х1300х400 floor |
| ТRТ – 20000М-380 (220) |
20000 |
30,0 (52,0) |
220 |
600х1300х400 floor |
| ТRТ – 24000М-380 (220) |
24000 |
36,0 (63,0) |
250 |
600х1300х400 floor |
| ТRТ – 25000М-380 (220) |
25000 |
38,0 (65,5) |
260 |
600х1300х400 floor |

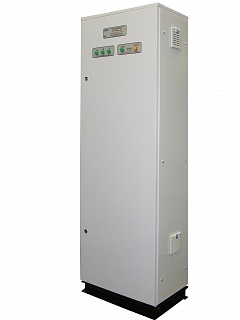

| ТRТ – 30000М-380 (220) |
30000 |
45,5 (78,5) |
300 |
600х1300х400 floor |
| ТRТ – 33000М-380 (220) |
33000 |
50,0 (86,5) |
310 |
800х1300х400 floor |
| ТRТ – 35000М-380 (220) |
35000 |
53,0 (91,5) |
390 |
800х1300х400 floor |
| ТRТ – 40000М-380 (220) |
40000 |
60,0 (105,0) |
400 |
800х1300х400 floor |
| ТRТ – 50000М-380 (220) |
5000 |
75,5 (131,0) |
460 |
800х1300х400 floor |
| ТRТ – 63000М-380 (220) |
63000 |
95,5 (165,0) |
510 |
800х1300х400 floor |

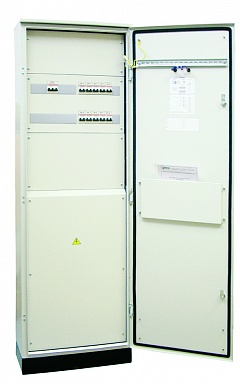

Three-phase dividing transformers. Protection degree IP 54.
U input - 380/220V, 50 Hz. U output - 380/220V +/-3%, 50 Hz. (U output - 220/127V +/-3%, 50 Hz)
| Model |
P nominal, VА |
I nominal, A |
Weight, kg |
Dimentions WхHхD, mm |
| ТRТ – 3000М-380 (220) |
3600 |
6 |
60 |
330х1900х310 floor with a socle |
| ТRТ – 6000М-380 (220) |
6600 |
10 |
100 |
330х1900х310 floor with a socle |
| ТRТ – 9000М-380 (220) |
8600 |
13 |
145 |
550х1900х310 floor with a socle |
| ТRТ – 10000М-380 (220) |
10500 |
16 |
145 |
550х1900х310 floor with a socle |
| ТRТ – 12000М-380 (220) |
13200 |
20 |
195 |
550х1900х310 floor with a socle |
| ТRТ – 15000М-380 (220) |
16500 |
25 |
220 |
550х1900х310 floor with a socle |
| ТRТ – 20000М-380 (220) |
20000 |
32 |
270 |
600х1800х400 floor |
| ТRТ – 24000М-380 (220) |
24000 |
40 |
300 |
600х1800х400 floor |
| ТRТ – 25000М-380 (220) |
25000 |
40 |
310 |
600х1800х400 floor |
| ТRТ – 30000М-380 (220) |
30000 |
50 |
350 |
600х1800х400 floor |
| ТRТ – 33000М-380 (220) |
33000 |
50 |
360 |
600х1800х400 floor |
| ТRТ – 35000М-380 (220) |
35000 |
55 |
450 |
600х1800х400 floor |
| ТRТ – 40000М-380 (220) |
40000 |
63 |
450 |
800х1800х600 floor |
| ТRТ – 50000М-380 (220) |
5000 |
80 |
500 |
800х1800х600 floor |
| ТRТ – 63000М-380 (220) |
63000 |
100 |
550 |
800х1800х600 floor |
