Single-phase TRO
Features of TRO transformers:
- The increased load ability
- High level of isolation of windings
- The shielding winding
- System of restriction of starting current
- Deviation of output tension idling and under loading no more than 5% of the input
- Monitoring system of current and temperature of windings of the transformer
- The monitoring system of isolation of the transformer and the connected network
- Low noisiness
- Natural ventilation
Circuit executions of transformers
- Execution 1. On an entrance and an exit costs on one regular automatic switch
- Execution 2. In coordination with the customer in a secondary chain the additional switching element (protection machine guns) is established
- Execution 3. Allows to realize automatic input of a reserve for one load
- Execution 4. Allows to realize automatic input of a reserve for several loadings
SV – the network supported by the emergency power supply
Technical parameters
The TRO single-phase dividing transformers with protection degree IP20
U input - 220V, 50 Hz. U output - 220V +/-2,5%.
| Model | P nominal, VА | I nominal, A | Weight, kg | Dimentions WхHхD, mm | Circuit executions |
| ТRО – 600М IP20 | 660 | 3 | 19 | 320х504х237 wall | 1 |
| ТRО – 1000М IP20 | 1200 | 6 | 35 | 320х504х237 wall | 1 |
| ТRО – 2000М IP20 | 2200 | 10 | 55 | 320х504х237 wall | 1 |
| ТRО – 3000М IP20 | 3500 | 16 | 70 | 272х945х350 floor | 1 |

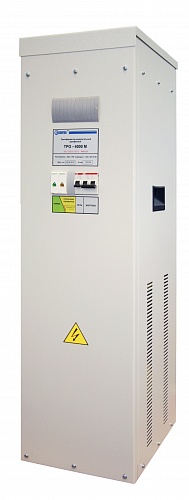

| ТRО – 4000М IP20 | 4400 | 20 | 85 | 272х945х350 floor | 1 |
| ТRО – 5000М IP20 | 5500 | 25 | 105 | 272х945х350 floor | 1 |
| ТRO – 6000М IP20 | 6000 | 27 | 110 | 272х945х350 floor | 1 |
| ТRО – 7000М IP20 | 7000 | 32 | 120 | 272х945х350 floor | 1 |
| ТRО – 8000МБ IP20 | 8000 | 36 | 130 | 268х926х395 floor, block | 1 |
| ТRО – 9000МБ IP20 | 8800 | 40 | 140 | 268х926х395 floor, block | 1 |
| ТRО – 10000МБ IP20 | 10500 | 50 | 140 | 268х926х395 floor, block | 1 |
Single-phase dividing TRO transformers with protection degree IP 54.
U input - 220V, 50 Hz. U output - 220V +/-2,5%.
| Model | P nominal, ВА | I nominal, A | Weight, kg | Dimentions WхHхD, mm | Circuit executions |
| ТRО – 600М IP54 | 660 | 3 | 20 | 380х800х215 wall | 1,2 |
| ТRО – 1000М IP54 | 1200 | 6 | 36 | 380х800х215 wall | 1,2 |
| ТRО – 2000М IP54 | 2200 | 10 | 57 | 380х800х215 wall | 1,2 |
| ТRО – 3000М IP54 | 3500 | 16 | 76 | 330х1300х310 floor | 1,2 |
| ТRО – 3000М IP54 | 3500 | 16 | 76 | 330х1900х310 напольный с цоколем | 1,2,3,4 |
| ТRО – 4000М IP54 | 4400 | 20 | 95 | 330х1300х310 floor | 1,2 |
| ТRО – 4000М IP54 | 4400 | 20 | 95 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 5000М IP54 | 5500 | 25 | 125 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 6000М IP54 | 6000 | 27 | 135 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 7000М IP54 | 7000 | 32 | 140 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 8000М IP54 | 8000 | 36 | 150 | 268х926х395 floor, block | 1,2,3,4 |
| ТRО – 9000М IP54 | 8800 | 40 | 160 | 268х926х395 floor, block | 1,2,3,4 |
| ТRО – 10000М IP54 | 10500 | 50 | 170 | 330х1900х310 floor with a socle | 1,2,3,4 |
How to make the order
LTD "PF "Constellation" makes TRO transformers according to individual specifications of the customer, and also issues standard decisions for medical institutions. We deliver production to hundreds of the cities of Russia and the next abroad. Coordinates of dealer points are specified on the site in the section "Contacts — Where to Buy".
It is possible to issue the order by phone, e-mail or through a feedback form on the site.
Our contacts: 8-800-333-00-68 (free of charge across Russia), (812) 327-07-06, e-mail: poligon@poligonspb.ru.
Address of plant: St. Petersburg, Koli Tomchaka St., 9, Zh.
Business hours: Monday-Friday from 9.00 till 18.00.
