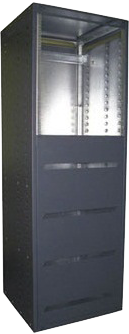

Assembly cases 19"
The closets are designed:
For placement of telecommunication equipment, stand by power supply systems and other equipment.
For use inside office and industrial premises.
Design
Body of the closets is assembled from separate standardized panels. Characteristicpeculiarityofthedesignisframeless system of the closet body. Side panels and base of the closet are load-bearing elements.
Despite such design it is possible to place in the closets equipment having mass up to 1000 kg. The closets may be supplied both in assembled form and in the form of a set of the panels.
The closets are complete with standard shelves having bearing capacity up to 200 kg.
If it is necessary,structure of the shelves may be strengthened up to 300 kg.
Strengthened shelves may be used, for example, for placement of storage batteries of standby power supply which have significant mass.
For placement of telecommunication equipment, stand by power supply systems and other equipment.
For use inside office and industrial premises.
Design
Body of the closets is assembled from separate standardized panels. Characteristicpeculiarityofthedesignisframeless system of the closet body. Side panels and base of the closet are load-bearing elements.
Despite such design it is possible to place in the closets equipment having mass up to 1000 kg. The closets may be supplied both in assembled form and in the form of a set of the panels.
The closets are complete with standard shelves having bearing capacity up to 200 kg.
If it is necessary,structure of the shelves may be strengthened up to 300 kg.
Strengthened shelves may be used, for example, for placement of storage batteries of standby power supply which have significant mass.
The closets make it possible to mount on them telecommunication equipment having different height values of front panels: 2/3/4/5/6 U. The rest free place is closed by perforated plugs 2/3/4/5/6 U.
Cables may enter into the closet both through upper cover equipped with soft shock absorbers from block penopolyurethane and through slots in the base. For convenient fixing of the cables,elements with perforation –tie rods are used.
The closets are made from galvanized steel, which allows ensuring electric contact of the structure elements and electric safety of the maintenance personnel without additional electric fixtures.
On internal side of right-side panel a fixed earthing bolt is located, which makes it possible to connect the equipment earthing terminals with the rack.
The closets are complete with supports of adjustable height.
External sides of the closet panels are painted. The color is gray 7024.
Coating is represented by impact-resistance epoxy powder composition.
Overall dimensions of assembly cases:
| Number of storeys U |
Height, mm |
Width, mm |
Depth, mm |
| 16 | 800 | 600 | 600 |
| 20 | 1000 | 600 | 600 |
| 24 | 1200 | 600 | 600 |
| 29 | 1400 | 600 | 600 |
| 33 | 1600 | 600 | 600 |
| 38 | 1800 | 600 | 600 |
It is possible to manufacture 2-storey closets of different height. Two-leveldesignmakes it possible, for example, to separate electronic equipment (unit 10U) and storage batteries (unit 30U).
| Options |
38U |
30U |
10U |
| The basis with possibility of cable input from below | + | + | + |
| The left and right side panels with perforation | + | + | + |
| Back panel | + | + | + |
| The top back cover is made with a soft sealant for the top cable input with perforation | + | + | + |
| Removable top forward cover with a soft sealant and perforation (for access to an assembly field) | + | + | + |
| The forward panel with perforation | + | + |
- |
| Corner the pro-carved lower | + | + | + |
| Corners side (left and right) for frontal fastening of the equipment | + | + | + |
| Coupler wide with perforation for fastening of cables | + | + | + |
| Coupler narrow with perforation for fastening of cables | + | + | + |
| The shelf for accumulators (facilitated/strengthened) | + | + |
- |
| Profiles connecting | + | + | + |
| Profiles for shelves | + | + | + |
| Support adjustable | + | + |
- |
Standard delivery – a collected rack in cardboard packing.
| Additional options |
38U |
30U |
10U |
| RSh-60 (supply switchboard on a direct current 48 V) 3U | + | + | + |
| VRU-380/220 (the introduction distributing device taking into account the electric power) 5U | + | + | + |
| Caps with perforation for 2U, 3U, 4U, 5U, 6U | + | + | + |
| Metal door with the lock |
- |
+ | + |
Non-standard delivery (in unassembled form): elements of a rack are packed into individual cardboard container.
The order of separate components (for example, shelves) a 19-inch rack is possible.
