Relay control motor start-up RKP-380
Purpose
The RKP-380D relay is designed for controlling start of the three-phase asynchronous electric motor (AEM) in industrial installations (compressors, pumps, fans, etc.) with external power contactors or other switching devices by means of the internal relay contacts.
Construction

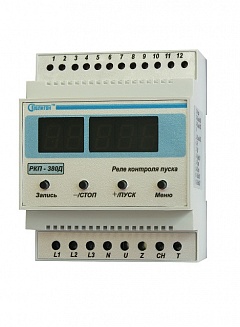

The RKP-380 relay is executed in the case for installation on a DIN lath.
On the front panel of the block are:
- display;
- 4 buttons for management of operating modes and the mode of programming of the RKP-380D relay: "Menu", "Record", "-/STOP", "+ / START".
In the top and lower part of the block there are screw terminal blocks for connection of the block to a controlled network, chains of the alarm system and actuation mechanisms.
For voltage measurement precision resistive dividers are used.
The microprocessor makes processing of signals of tension and external sensors, and operates operation of internal relays on the specialized program.
The RKP-380D relay is designed for controlling start of the three-phase asynchronous electric motor (AEM) in industrial installations (compressors, pumps, fans, etc.) with external power contactors or other switching devices by means of the internal relay contacts.
Construction
The RKP-380 relay is executed in the case for installation on a DIN lath.
On the front panel of the block are:
- display;
- 4 buttons for management of operating modes and the mode of programming of the RKP-380D relay: "Menu", "Record", "-/STOP", "+ / START".
In the top and lower part of the block there are screw terminal blocks for connection of the block to a controlled network, chains of the alarm system and actuation mechanisms.
For voltage measurement precision resistive dividers are used.
The microprocessor makes processing of signals of tension and external sensors, and operates operation of internal relays on the specialized program.
The RKP-380D relay ensures:
- control and display of current voltage readingsof the 220/380V, 50Hz three-phase network independently for each phase;
- automatic control of the asynchronous electric motorwork by means of internal relays according to the assigned values;
- disconnection of the asynchronous electric motorat actuation of emergency sensors;
- smooth start of an asynchronous electric motorby switching over from the «star” to the “delta” scheme;
- possibility of automatic control on basis of signals from external sensors;
- counting, indicationandpossibilityofeditingtotal asynchronous electric motor hours and control of external counter of total motor hours.
Technical characteristics
- control and display of current voltage readingsof the 220/380V, 50Hz three-phase network independently for each phase;
- automatic control of the asynchronous electric motorwork by means of internal relays according to the assigned values;
- disconnection of the asynchronous electric motorat actuation of emergency sensors;
- smooth start of an asynchronous electric motorby switching over from the «star” to the “delta” scheme;
- possibility of automatic control on basis of signals from external sensors;
- counting, indicationandpossibilityofeditingtotal asynchronous electric motor hours and control of external counter of total motor hours.
Technical characteristics
|
Parametr |
Value |
| Rated working voltage | 220/380 V; 50 Hz |
|
Time of work in start mode according to the “star” scheme" |
0,1÷99,9 s |
|
Range of minimal phase voltage setting «U,(V)», off/on |
150÷210 V |
| Range of maximal phase voltage disconnection setting «U,(V)»» | 230÷270 V |
| Time delay in switching over from “star” to “delta” | 40÷150 ms |
|
Timedelay in AEM interlockingin “automatic” operation mode |
1÷250 s |
| Maximum switched current of contact of the internal relay (the АС1 240V mode) | 6 А |
|
Voltage for external motometer |
=12+/-20% V |
|
Maximum output current of external motometer |
0,02 А |
| Overall dimensions of the unit | 71 х 90 х 60 mm |
| Maximum mass | 0,25 kg |
