Supply-Line Interference-Suppression Filter FC-16M
The filter is designed for:
- electronic equipment protection against industrial and atmospheric high-frequency noise propagated over the power supply network;
- - prevention of the industrial noise propagation over power supply network from the industrial equipment, which is source of the noise.
Warranty period – 2 years.
Design of system
The FS-16Mfilteris arranged in the housing for its installation on the 35 mm DIN-rack 35мм.
On front panel of the unit the “Network” indicator is located – indication of the power supply voltage presence. In lower part of the unit terminal blocks for connection of the filter to the network are located.

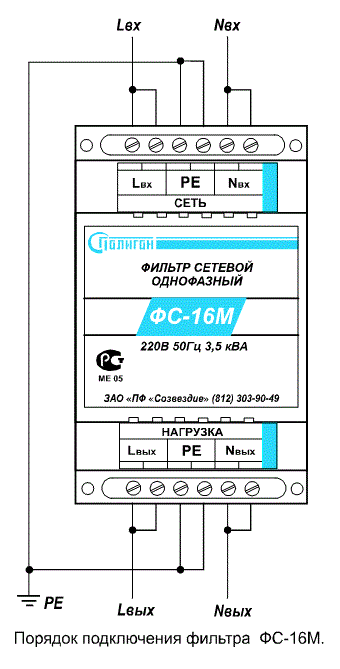

It is connected to the power supply line discontinuity by a wire having section not less than 2.5 mm2.
Availability of the 16A protection automaton is obligatory requirement.
For convenience of mounting the filter is provided with double terminals.
Provides weakening of pulse hindrances and noise in the range of frequencies of 0,15 - 30 MHz not less than on 35 DB; protection of the electronic equipment against pulse hindrances.
Technical characteristics
| Parameter | Value |
| Rated entrance voltage | 220 V, 50 Hz |
| Maximum power | 3500 W |
| Voltage output | 220 V, 50 Hz |
| Efficiency, not less | 99,5 % |
| Filtration range (pict.2) | 0,15–30 MHz |
| Suppression of hindrances in the filtration range | 20-60 dB |
| Maximum pulse current of protection | 8 кА |
| Overall dimensions | 54 х 90 х 60 mm |
| Weigh | 0,2 kg |
Parameters of suppression of asymmetrical hindrances in power-supply circuits
| MHz frequency | 0,1 | 0,3 | 1,0 | 3,0 | 10,0 | 30,0 |
| The brought attenuation of dB | 20 | 34 | 40 | 60 | 60 | 40 |
