RKN-3M
Purpose
The block of the relay of control of tension of RKN-3M is intended for protection of consumers of the electric power in case of an exit of tension of a network phase for the established values by means of contacts of the relay brought to a terminal block and also for indication of an operating mode of the block.

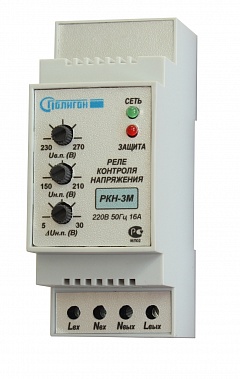

Design of system
– The RKN-3M block is executed in the case for installation on a DIN lath.
– On the forward panel of the block are 3 handles of regulation of parameters of the block and Network and Protection indicators.
– In the lower part of the block there are terminal blocks for connection of the block to a network и to the scheme of management.
– Adjustable settings are established by the user depending on parameters of the connected equipment. (Pict. 1).
The block of the relay of control of tension of RKN-3M is intended for protection of consumers of the electric power in case of an exit of tension of a network phase for the established values by means of contacts of the relay brought to a terminal block and also for indication of an operating mode of the block.
Design of system
– The RKN-3M block is executed in the case for installation on a DIN lath.
– On the forward panel of the block are 3 handles of regulation of parameters of the block and Network and Protection indicators.
– In the lower part of the block there are terminal blocks for connection of the block to a network и to the scheme of management.
– Adjustable settings are established by the user depending on parameters of the connected equipment. (Pict. 1).
Technical characteristics
Pict. 1. Standard scheme connection of the RKN-3M relay.
|
Parameter |
Value |
| Nominal entrance tensionе | 220 V; 50 Hz |
| Rated output voltage | 220 V; 50 Hz |
| Limits of regulation of tension shutdowns on the top threshold "U top" | 230…270 V |
| Limits of regulation of tension of inclusion on the lower threshold «U low» | 150…210 V |
| The switched contact current (АС1 250 V) | max 16 А |
| Hysteresis of the top threshold (unregulated) «U top»=Utop.turn-off-Utop turn-on, | 2 V |
| Hysteresis of the lower threshold (adjustable) «U low»=U low turn on-U low turn-off | 5…30 V |
| Temporary delay of turning on of the relay (adjustable) «t on» | 4…6 s |
| Temporary delay of shutdown of the relay (speed) «t off» | 0,2…0,5 s |
| Overall dimensions of the block | 35 х 90 х 60 mm |
| Weight | 0.2 kg |
| Section of wires for connection of the block | 1,5 mm2 |
Pict. 1. Standard scheme connection of the RKN-3M relay.
