RKN-63
Purpose
The block of the relay of control of tension of RKN-63 is intended for protection of single-phase loading against inadmissible fluctuations of supply voltage.
RKN-63 provides shutdown of single-phase consumers at tension deviation limits of the admission established by the user, and automatic inclusion at normalization of tension.

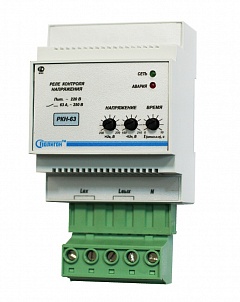

Design of system
– The RKN-63 block is executed in the case for installation on a DIN lath.
– On the forward panel of the block there are 3 handles of regulation of parameters of the block and Network and Accident indicators.
– In the lower part of the block there are terminal blocks for connection of the block to a network and to the scheme of management.
– Adjustable settings are established by the user depending on parameters of the connected equipment.
The block of the relay of control of tension of RKN-63 is intended for protection of single-phase loading against inadmissible fluctuations of supply voltage.
RKN-63 provides shutdown of single-phase consumers at tension deviation limits of the admission established by the user, and automatic inclusion at normalization of tension.
Design of system
– The RKN-63 block is executed in the case for installation on a DIN lath.
– On the forward panel of the block there are 3 handles of regulation of parameters of the block and Network and Accident indicators.
– In the lower part of the block there are terminal blocks for connection of the block to a network and to the scheme of management.
– Adjustable settings are established by the user depending on parameters of the connected equipment.
Technical characteristics
Pict.1. Standard scheme of connection of the RKN-63 block .
|
Parameter |
value |
| Rated entrance voltage | 220 V; 50 Hz |
| Rated output voltage | 220; 50 |
| Limits of regulation of tension of shutdown on the top threshold «U top» | 220…270 V |
| Limits of regulation of tension of inclusion on the lower threshold «U low» | 150…220 V |
| The switched contact current; max | 63 А |
| Hysteresis of the top threshold (unregulated); «U top»=U top turn-off-U top turn-on | 1…2 V |
| Hysteresis of the lower threshold (adjustable) «U low.»=U low turn-on - U low turn-off | 10 V |
| Temporary delay of turning on of the relay (unregulated) «t turn-on» | 0,1 s |
| Temporary delay of shutdown of the relay (speed) «t turn-off» | 0,2…10 s |
| Overall dimensions of the block | 71 Х 90 Х 60 mm |
| Weight | 0,2 kg |
Pict.1. Standard scheme of connection of the RKN-63 block .
