Single-phase TRO
Features of TRO transformers:
- The increased load ability
- High level of isolation of windings
- The shielding winding
- System of restriction of starting current
- Deviation of output tension idling and under loading no more than 5% of the input
- Monitoring system of current and temperature of windings of the transformer
- The monitoring system of isolation of the transformer and the connected network
- Low noisiness
- Natural ventilation
Circuit executions of transformers
- Execution 1. On an entrance and an exit costs on one regular automatic switch
- Execution 2. In coordination with the customer in a secondary chain the additional switching element (protection machine guns) is established
- Execution 3. Allows to realize automatic input of a reserve for one load
- Execution 4. Allows to realize automatic input of a reserve for several loadings
SV – the network supported by the emergency power supply
Technical parameters
The TRO single-phase dividing transformers with protection degree IP20
U input - 220V, 50 Hz. U output - 220V +/-2,5%.
| Model | P nominal, VА | I nominal, A | Weight, kg | Dimentions WхHхD, mm | Circuit executions |
| ТRО – 600М IP20 | 660 | 3 | 19 | 320х504х237 wall | 1 |
| ТRО – 1000М IP20 | 1200 | 6 | 35 | 320х504х237 wall | 1 |
| ТRО – 2000М IP20 | 2200 | 10 | 55 | 320х504х237 wall | 1 |
| ТRО – 3000М IP20 | 3500 | 16 | 70 | 272х945х350 floor | 1 |
| ТRО – 4000М IP20 | 4400 | 20 | 85 | 272х945х350 floor | 1 |
| ТRО – 5000М IP20 | 5500 | 25 | 105 | 272х945х350 floor | 1 |
| ТRO – 6000М IP20 | 6000 | 27 | 110 | 272х945х350 floor | 1 |
| ТRО – 7000М IP20 | 7000 | 32 | 120 | 272х945х350 floor | 1 |
| ТRО – 8000МБ IP20 | 8000 | 36 | 130 | 268х926х395 floor, block | 1 |
| ТRО – 9000МБ IP20 | 8800 | 40 | 140 | 268х926х395 floor, block | 1 |
| ТRО – 10000МБ IP20 | 10500 | 50 | 140 | 268х926х395 floor, block | 1 |
Single-phase dividing TRO transformers with protection degree IP 54.
U input - 220V, 50 Hz. U output - 220V +/-2,5%.
| Model | P nominal, ВА | I nominal, A | Weight, kg | Dimentions WхHхD, mm | Circuit executions |
| ТRО – 600М IP54 | 660 | 3 | 20 | 380х800х215 wall | 1,2 |
| ТRО – 1000М IP54 | 1200 | 6 | 36 | 380х800х215 wall | 1,2 |
| ТRО – 2000М IP54 | 2200 | 10 | 57 | 380х800х215 wall | 1,2 |
| ТRО – 3000М IP54 | 3500 | 16 | 76 | 330х1300х310 floor | 1,2 |
| ТRО – 3000М IP54 | 3500 | 16 | 76 | 330х1900х310 напольный с цоколем | 1,2,3,4 |
| ТRО – 4000М IP54 | 4400 | 20 | 95 | 330х1300х310 floor | 1,2 |
| ТRО – 4000М IP54 | 4400 | 20 | 95 | 330х1900х310 floor with a socle | 1,2,3,4 |

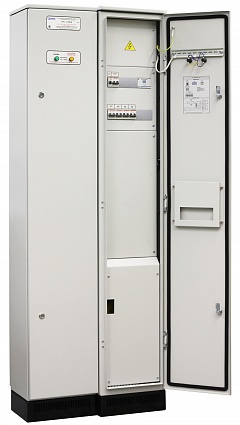

| ТRО – 5000М IP54 | 5500 | 25 | 125 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 6000М IP54 | 6000 | 27 | 135 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 7000М IP54 | 7000 | 32 | 140 | 330х1900х310 floor with a socle | 1,2,3,4 |
| ТRО – 8000М IP54 | 8000 | 36 | 150 | 268х926х395 floor, block | 1,2,3,4 |
| ТRО – 9000М IP54 | 8800 | 40 | 160 | 268х926х395 floor, block | 1,2,3,4 |
| ТRО – 10000М IP54 | 10500 | 50 | 170 | 330х1900х310 floor with a socle | 1,2,3,4 |
