ESR - hinged plastic shields

"PF "Сonstellation" offers a series of hinged plastic distributive guards of ESR and rosette blocks for connection of the medical and industrial equipment.

Guards have extent of protection of IP 54 and allow external processing by sanitary solutions.

Products are developed taking into account GOST P 50571.28-2007.

Types of guards of ESR

Appearance	Characteristics

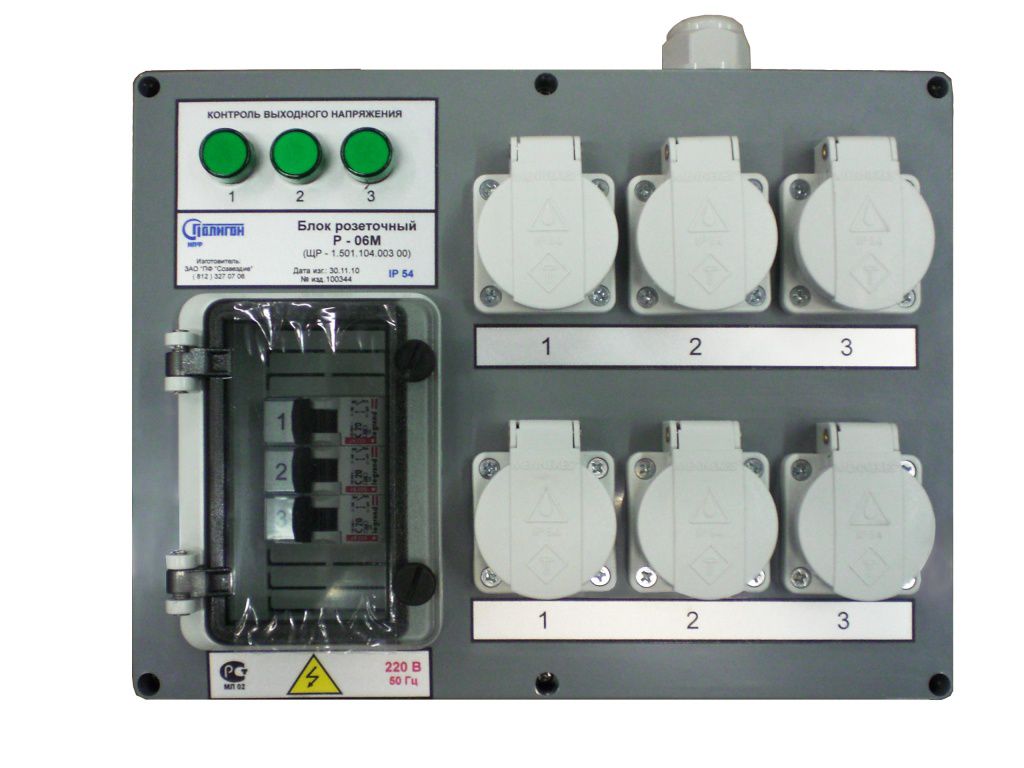

	R-06М Common industrial application, connection of the medical equipment in rooms gr.1*. Complete set: three C16A machine guns, six single-phase sockets 16A, indication of tension. Weight: no more than 3,5 kg Hinged 300x230x86 mm.
	ESR-О-6 Connection of the medical equipment in rooms gr.1 and gr.2** (including IT-network). Complete set: three bipolar C16A machine guns, six single-phase sockets 16A (three groups on two), indication of tension. Weight: no more than 5,5 kg Hinged 230 x 300 x 86 mm

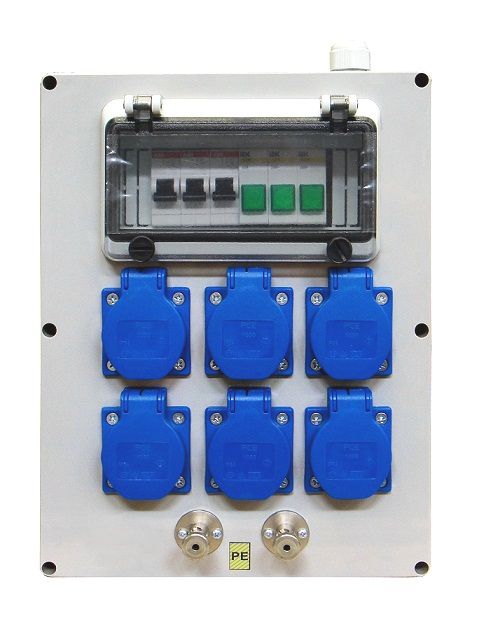

	ESR-О-6К Connection of the medical equipment in rooms gr.1 and gr.2** (including IT-network). Complete set: three bipolar C16A machine guns, six single-phase sockets 16A (three groups on two), indication of tension, two plugs of grounding. Weight: no more than 5,5 kg Hinged 230 x 300 x 86 mm

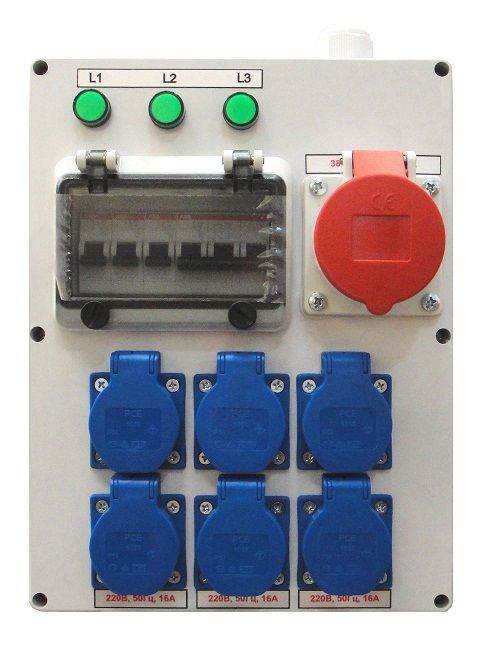

	ESR-О-6Т Connection of the medical equipment in rooms gr.1 and gr.2 at power supply of loadings from network TN-S. Complete set: three C16A machine guns, triple-pole machine gun 16A, six single-phase sockets 16A, three-phase socket 16A and indication of tension. Weight: no more than 5,5 kg Hinged 230 x 300 x 86 mm
	ESR-О-6С Connection of the medical equipment in rooms gr.1 and gr.2 at power supply of loadings from TN-S TN-S. Complete set: three C16A machine guns, the machine gun 32A, six single-phase sockets 16A, the single-phase socket 32A and indication of tension at power supply of loadings from network TN-S. Weight: no more than 5,5 kg Hinged 230 x 300 x 86 mm
	ESR-О-2P Common industrial application, connection of the medical equipment in rooms gr.1 and gr.2. Complete set: two bipolar C16A machine guns, two single-phase sockets 16A, indication of tension. Weight: no more than 5,5 kg Hinged 300 х 230 х 86 mm.
	ESR-О-2PK Common industrial application, connection of the medical equipment in rooms gr.1 and gr.2. Complete set: two bipolar C16A machine guns, two single-phase sockets 16A, indication of tension, two plugs of grounding. Weight: no more than 5,5 kg Hinged 300 х 230 х 86 mm.
	ESR-О-2Т Connection of the medical equipment in rooms gr.1 and a mobile rentgenoborudovaniye in rooms gr.2 at power supply from network TN-S. Complete set: C16A machine guns, two single-phase sockets 16A, three-phase socket 16A, indication of tension. Weight: no more than 7,5 kg Hinged 300 х 230 х 86 mm.
	ESR-О-2ТК Common industrial application, connection of the medical equipment in rooms gr.1 and mobile radiological – in rooms gr.2. Complete set: C16A machine guns, two single-phase sockets 16A, three-phase socket 16A, indication of tension, three plugs of grounding. Weight: no more than 7,5 kg Hinged 300 х 230 х 86 mm.
	ESR-О-3ТК Common industrial application, connection of the medical equipment in rooms gr.1 and the mobile radiological equipment in rooms gr.2. Complete set: C16A machine guns, three single-phase sockets 16A, three-phase socket 16A, indication of tension, three plugs of grounding. Weight: no more than 8 kg Hinged 300 х 230 х 86 mm.
	ESR-F-3 Common industrial application, connection of the medical equipment in rooms gr.1 (including physical therapy offices). Complete set: single-phase differential machine gun 16A/30ma, type "A", three single-phase sockets 16A, indication of tension and three plugs of grounding. Weight: no more than 5,5 kg Hinged, 300 х 230 х 86 mm.
	ESR-P-SК Connection of single-phase loading to 7 kVA. Complete set: single-phase socket 32A, tension indicator, grounding plug. Weight: no more than 2 kg Hinged, 150 х 200 х 76 mm.
	ESR-P-2К Common industrial application, connection of the medical equipment in rooms gr.1 and gr.2. Complete set: two single-phase sockets 16A, two plugs of grounding. Weight: no more than 2 kg Hinged, 240 х 155 х 110 mm.
	ESR-З-3 Common industrial application, connection of grounding in rooms gr.1 and gr.2. Complete set: three plugs of grounding. Weight: no more than 1,5 kg Hinged, 160х115х105 mm.

* Gr. 1 – According to GOST 50571.28-2006 the appendix "B", premises of group 1 treat: hospital chambers, procedural offices physiotherapeutic, roentgenoscopic and hydrotherapeutic rooms.
**Gr. 2 – According to GOST 50571.28-2006 the appendix "B" to premises of group 2 belong: operational, resuscitation, rooms of intensive therapy, anesteziologichesky offices, rooms of preparation for operation, postoperative chambers, traumatologic offices, rooms for prematurely born children.

According to the specification production the rosette blocks with other configuration is possible.
