SRM - metal shields hidden installation
Products are developed taking into account GOST P 50571.28-2007.
The SRM series – the built-in metal boards.
|
Appearance |
Characteristics |
 |
SRM-60 Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2.
The built-in board on 12 modules, tires N, RE.
Metal, 340х280 mm (WхH) Nish 260х200х60 mm (WхHхD) |
 |

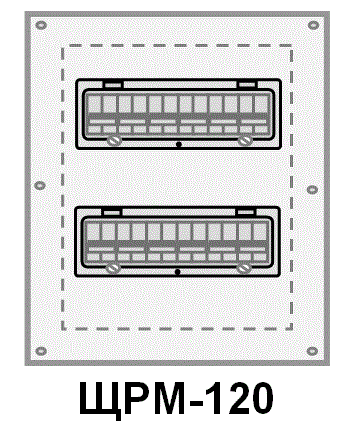

SRM-120
Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2.
The built-in board on 24 modules, tires N, RE.
Metal, 340х440 mm (WхH). Nish 260х360х60 mm (WхHхD) |
|
SRM-180
The built-in board on 36 modules, tires N, RE.
Metal, 340х600 mm (WхH). Nish 260х520х60 mm (WхHхD) |
|
|

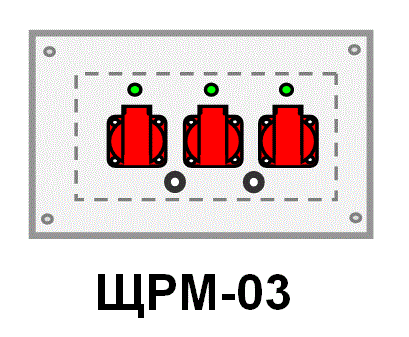

SRM-03
Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2.
Three single-phase sockets 16A, with indication of tension, 2 plugs of grounding. Metal, 340х200 mm (WхH). Nish 260х120х60 mm (WхHхD) |
|

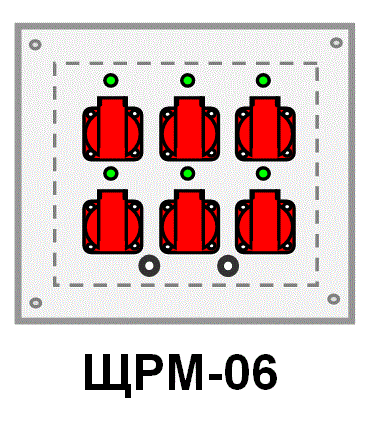

SRM-06 Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2.
Six single-phase sockets 16A, with indication of tension. Metal, 340х280 mm (WхH). Nish 260х200х60 mm. (WхHхD) |
|

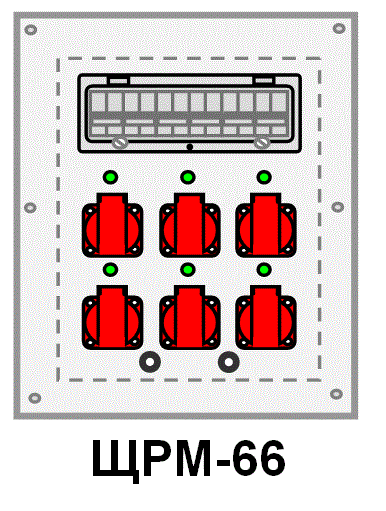

SRM-66
Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2.
Six bipolar machine guns 16A, six single-phase sockets 16A with indication of tension, two plugs of grounding.
Metal, 340х440 mm (WхH) Nish 260х360х60 mm (WхHхD) |
|

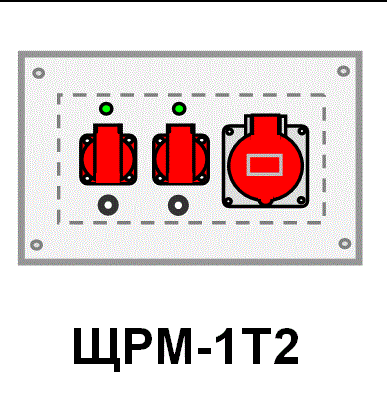

SRM-1Т2 Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2. (TN-S network).
Two single-phase sockets 16A, three-phase socket 16A, indication of tension, two plugs of grounding.
Metal, 340х200 mm (WхH) Nish 260х120х60 mm (WхHхD) |
|

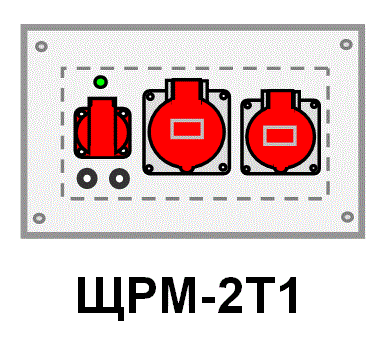

SRM-2Т1 Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2. (TN-S network).
Single-phase socket 16A, three-phase socket 16A, three-phase socket 32A, indication of tension, two plugs of grounding.
Metal, 340х200 mm (WхH) Nish 260х120х60 mm (WхHхD) |
 |

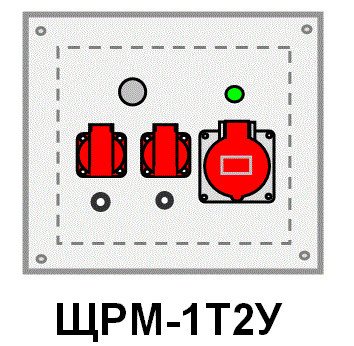

SRM-1Т2U Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2. (TN-S network).
Two single-phase sockets 16A, three-phase socket 16A, indication of tension, two plugs of grounding, button ON/OFF. Metal, 340х280 mm (WхH) Nish 260х200х60 mm (WхHхD) |
|
SRM-SТ1
Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2. (TN-S network).
Single-phase socket 16A, single-phase socket 32A, three-phase socket 16A, indication of tension, two plugs of grounding.
Metal, 340х200 mm (WхH) Nish 260х120х60 mm (WхHхD) |
 |

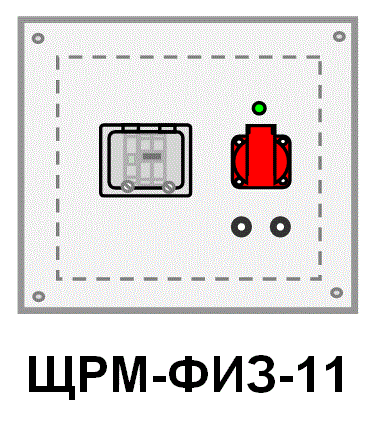

SRM-FIZ-11 Common industrial application, connection of the medical equipment in rooms gr.1. (including physical therapy offices).
Single-phase differential machine gun 16A/30ma, type "A", socket 16A, indication of tension and plug of grounding.
Metal, 340х280 mm (WхH) Nish 260х200х60 mm (WхHхD) |
 |

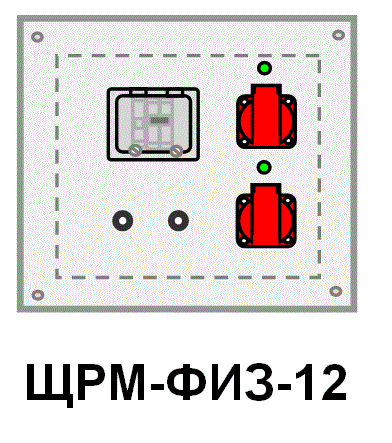

SRM-FIZ-12 Common industrial application, connection of the medical equipment in rooms gr.1. (including physical therapy offices).
Single-phase differential machine gun 16A/30ma, type "A", sockets 16A, indication of tension and plug of grounding. Metal, 340х280 mm (WхH). Nish 260х200х60 mm (WхHхD) |
 |

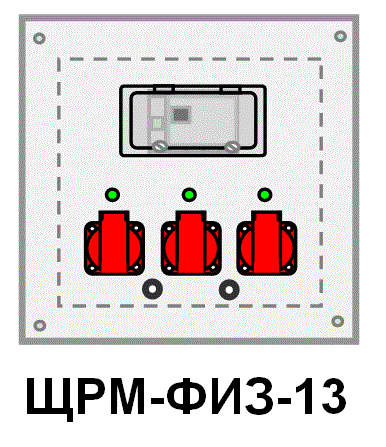

SRM-FIZ-13 Common industrial application, connection of the medical equipment in rooms gr.1. (including physical therapy offices).
Three-phase differential machine gun 16A/30ma, type "A", three sockets 16A, indication of tension and two plugs of grounding.
Metal, 340х360 mm (WхH). Nish 260х280х60 mm (WхHхD) |
|
|
SRM-SТ1U Common industrial application, connection of the medical equipment in rooms gr.1. and gr.2.
Single-phase socket 16A, single-phase socket 32A, three-phase socket 16A, indication of tension, two plugs of grounding, button ON/OFF.
Metal, 340х280 mm (WхH) Nish 260х200х60 mm (WхHхD) |
|

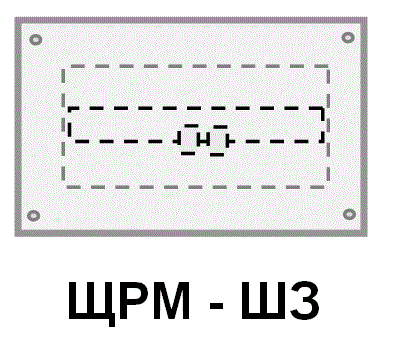

SRM-ShZ Board for the organization of systems of protective grounding, functional grounding and system of equalizing of potentials. The isolated copper tire of 40х5 mm with plugs of connection of conductors: 28 - to 6 mm 2, 2 - from 16 to 50 mm2. Metal, 340х200 mm (WхH) Nish 260х120х60 mm (WхHxD) |
 |

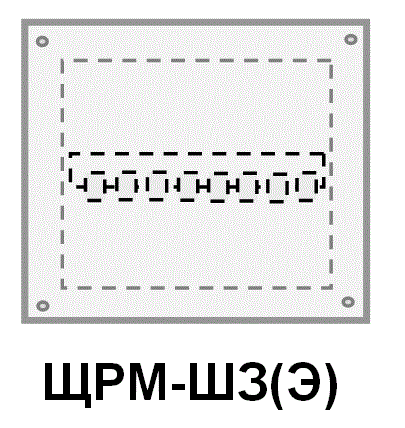

SRM-ShZ(E) Board for the organization of systems of protective grounding, functional grounding and system of equalizing of potentials the floor. The isolated copper tire of 40х5 mm with plugs of connection of conductors: 8 - from 16 to 50 mm2. Metal, 340х280 mm (WхH) Nish 260х200х60 mm (WхHхD) |
 |

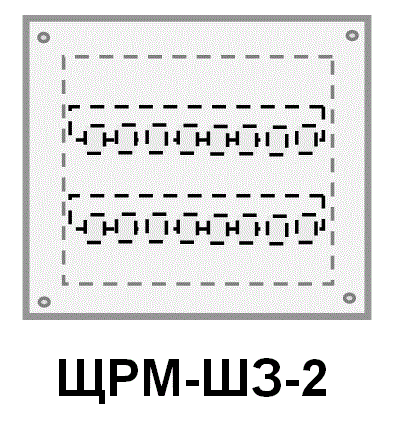

SRM-ShZ-2 Board for the organization of systems of protective grounding, functional grounding and system of equalizing of potentials the floor. Two isolated copper tires of 40х5 mm with plugs of connection of conductors: 28 - to 6 mm2, 2 - from 16 to 50 mm2 for each. Metal, 340х280 mm (WхH) Nish 260х200х60 mm (WхHхD) |
 |
SRZ-01, SRZ-03 Board for expeditious connection of conductors of grounding and equalizing of potentials of the mobile equipment. SRZ-01 one plug of grounding. Metal 120х120 mm.. SRZ-03 three plugs of grounding. Metal 260х120 mm. |
