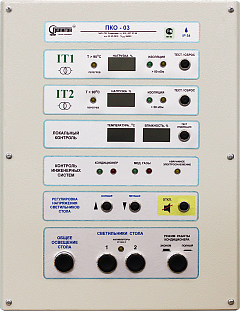

UPS for surgical lights and indicator board PKO operating
Purpose
The uninterruptible power supply for the mobile fluorographic office (FO), is intended for ensuring uninterrupted food of computing means with galvanic division of an onboard and power line, and blocks among themselves.
The UPS block ensures functioning of the equipment from the internal accumulator (joint stock bank) within 15 min. at deterioration of parameters of an external network below the established values or at its loss.
Additional functions
The uninterruptible power supply for the mobile fluorographic office (FO), is intended for ensuring uninterrupted food of computing means with galvanic division of an onboard and power line, and blocks among themselves.
The UPS block ensures functioning of the equipment from the internal accumulator (joint stock bank) within 15 min. at deterioration of parameters of an external network below the established values or at its loss.
Additional functions
- the distributed food of consumers on independent channels;
- automatic recharge of joint stock bank two not dependent chargers from an external network;
- protection against short circuit in loading;
- galvanic outcome between an entrance network and exits on a direct current with an electric durability of 4520 V within 1 min.;
- galvanic outcome between ARM-1 and ARM-2 on a direct current with an electric durability of 500 V within 1 min..
Technical characteristics
Construction
The UPS block is executed by block modular principle in the form of a metal case which can be established on a wall by means of special arms.
On the forward panel of the block there are:
Connection of the block is carried out by means of the RM(RMD) sockets excluding the wrong connection of consumers to the UPS block.
The product is delivered in a climatic modification of UHL 3.1 in accordance with GOST 15150-69 (for execution of U3 in a non-working state – storage and transportation at breaks in work lasting not more than 7 days).
| Parameter |
Value |
| Rated entrance voltage | 220±20% V; 50Hz |
| Power consumption, no more |
1,0 kVa |
| The battery A*h/V | 7; 12 |
| Number of batteries in the block | 4 |
| Dimentions of battary (WхHхD) | 65х94+4х151 |
| Battery charge current, А | 0,7 |
| Operating time of consumers at power supply from the battery, not less, minutes. | 15 |
| The minimum time of a subcharge for repeated transition to operation of the block from battery, not less, hour | 5 |
| Switching time a network - the battery, no more, ms | 100 |
| The lower threshold of tension of a network at which comes switching for work from the battery, V | 176 |
| Nominal tension / current of the ARM-1, V/A channel | =24/15 |
| Nominal tension / current of the АRМ-2, V/A channel | =24/15 |
| Nominal tension / current of the LAN, В/А channel | =24/1,0 |
| Total efficiency, not less | 80% |
| Isolation resistance, not less, megohm |
5,0 |
| Block dimensions, no more (WхHхD), mm, with canopies | 430х440х205 |
| Mass of the block, no more, kg | 35,0 |
Construction
The UPS block is executed by block modular principle in the form of a metal case which can be established on a wall by means of special arms.
On the forward panel of the block there are:
- NETWORK switch;
- under the transparent opening observation port there are safety locks of channels of output tension with the corresponding light-emitting diodes.
Connection of the block is carried out by means of the RM(RMD) sockets excluding the wrong connection of consumers to the UPS block.
The product is delivered in a climatic modification of UHL 3.1 in accordance with GOST 15150-69 (for execution of U3 in a non-working state – storage and transportation at breaks in work lasting not more than 7 days).
