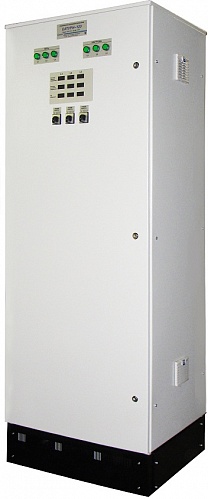

Power 80-2000 kVa

For convenience of transportation, installation and repair the voltage stabilizer is broken into seven parts: actually a case with connection plugs, the machine gun, contactors, BYPASS system and elements of the general management, three transformer blocks and three unified adjustment blocks with autotransformers. Connection of blocks is among themselves carried out by means of power tires and sockets.

Voltage stabilizers have the unified payment of management on the basis of the microprocessor.

The knot of electromecanics is built on the basis of autotransformers of the German firm TTW, differing in high reliability and long service life.

Options for stabilizers with power from 1,0 MVA

• Full manual or automatic «BYPASS»
• Galvanic division of a power network and network of loading
• Maintenance of a microclimate in a case (the conditioner, a heater)
• Installation of the entrance automatic switch

Recommendations about a complete set of a three-phase voltage stabilizer
For three-phase loadings like engines, tower cranes, industrial refrigerators or technological lines the stabilizer is equipped with the relay of control of phases with the corresponding algorithm of protective shutdown (look at RKF–3/1–М)

At loss of one of phases or a distortion of phases, for any reasons, this protection will de-energize such loading in order to avoid more serious accident.
Such protection not only isn't useful to power supply of single-phase loadings of a house or the powerful computer network, but also is harmful. In this case loading, as a rule, consists of a set single-phase and shutdown of one of phases doesn't lead to accident of loading.
For such consumers protection on phases is carried out separately. Thus, at the order it is necessary to specify necessary option of protection.
