Electronic Cascade

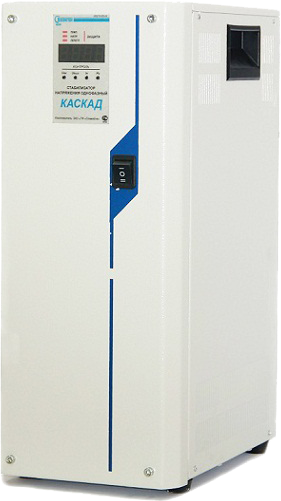

The “Cascade” single-phase voltage stabilizers 800 and 1200 Va correction accuracy ± 5%; dimensions – 150х95х260 mm 2 and 3,5 Va correction accuracy ± 2,5%; dimensions – 130х380х220 mm from 4 to 20 kVa correction accuracy ± 2,5%; dimensions – 215х485х300 mm All models maintain overloads of 200% – 100 seconds; 400% – 10 seconds, 900% – 2 seconds The efficiency for all Cascade series is equal 98% All models work with the 8th multiple starting currents

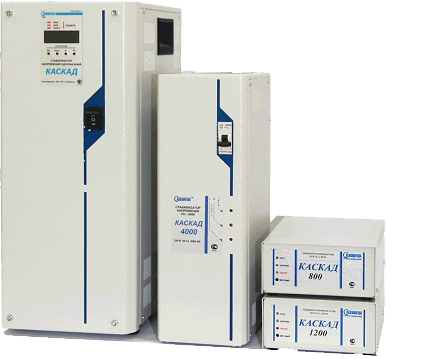

SINGLE-PHASE VOLTAGE STABILIZERS ELECTRONIC CASCADE Cascade from 0,8 to 3,5 kVa	Cascade from 4 to 20 kVa

Advantages of electronic Cascade stabilizers

• Work without loss of power in all range of entrance tension
• Correction accuracy +/-2,5%, doesn't depend on the connected power and entrance tension
• Regulation of output tension without distortion and a rupture of a phase
• Use of natural cooling relieves of noise of the fan
• Due to use of own transformers it isn't required to consider a stock on power
• Works from any source of the electric power: from a network, diesel or the petrolgenerator
• The compact design and the reliable metal case provide reliable protection of elements of the stabilizer
• The qualitative element base provides for many years works

Electronic voltage stabilizers "Cascade" provide:

• Stabilization of tension in the wide range of entrance tension, without emission of hindrances in a network and distortions of a form of the feeding tension.
• Automatic shutdown of loading at change of tension of a network is lower or higher than admissible value. Return to a working condition after normalization of tension.
• Protection of loading against electromagnetic hindrances of a power line and clearing of powerful pulse hindrances of atmospheric and industrial character.

Multistage system of protection of Cascade stabilizers

• protection of loading against accident of a network
• protection of loading against pulse hindrances
• lighting protection
• shutdown of loading at accident of a network
• shutdown of loading at an overload
• shutdown at an overheat
• shutdown at short circuit in loading
• control of temperature in the block
• the analysis of parameters of a network and the test of system at start

Classification of electronic stabilizers

Electronic stabilizers can be divided into 2 types:

• switching happens at the expense of electronic keys relays
• switching happens at the expense of simistor or tiristor (semiconductors)

Relay voltage stabilizers carry to the most reliable due to adjustment of switching of windings of the transformer by means of electronic keys. The electronic key represents couple the transistor relay. Such electronic key isn't sensitive to hindrances of a network and itself isn't their source.

At the expense of the original circuit decision switching of the relay is made without gap, in a secondary chain (the stabilizer works without rupture of a phase). At the expense of it load of switching elements is minimum.

Accuracy of operation of the relay stabilizer in direct ratio to number of windings of the transformer – the more windings, the is more exact tension at the exit. Speed of action is inversely proportional to number of windings – the accuracy and number of windings is higher, the more time is required for connection of all windings of the transformer.

The main difference of relay voltage stabilizers from the other – step regulation of current as alignment of current happens by consecutive connection of windings.

How to buy the electronic stabilizer

It is possible to leave the order for an electronic voltage stabilizer by phones: 8-800-333-00-68 (it is free across Russia), (812) 327-07-06 (St. Petersburg), (495) 665-54-39 (Moscow).
The order can be sent by e-mail poligon@poligonspb.ru or through a feedback on the site.
Technical specialists of the company will help to choose the necessary stabilizer.
