Power 4-20 kVa

‹ ›

Shutdown of the stabilizer at an overload and short circuit in a network
Protection of loading against accident of a network (threshold value Uoutput 176V, 242V)
Protection of loading against pulse hindrances
Lighting protection
Correction accuracy +/-2,5% doesn't depend on the connected power and entrance tension
System of a bypass
Indication of parameters of a network
The analysis of parameters of a network and the test of system at inclusion
Work with any type of loadings
Work both from a network, and from petrol and the diesel generator without rupture of a phase, without emission of hindrances in a network and distortions of a form of the feeding tension;
Warranty period – 3 years.

Are intended:

For providing qualitative power supply of computers, office equipment, the medical equipment, audio-video equipment and other industrial and household equipment, in networks with tension other than the nominal;
Дfor protection of electronic equipment against the industrial radio and atmospheric pulse noises extended on power supply network.

Systems of protection of loading

At accident of a network and increase (decrease) of phase tension at the voltage stabilizer exit more (less) than 242 (176) B, there is a shutdown of loading. Inclusion of loading is made automatically after normalization of output tension.
All models of voltage stabilizers have electronic protection against short circuit and protection against an overload.
On all models varistors for protection against powerful pulse hindrances are installed. Varistors protect loading from the high-voltage emissions caused by lightning discharges, transition processes in a network, the welding equipment, transport etc.

Parameters of protection against pulse hindrances

Parameter	Value
The maximum pulse current maintained by the limiter	12 kА
The maximum disseminated energy	250 J
Reaction time	20 ns

Design

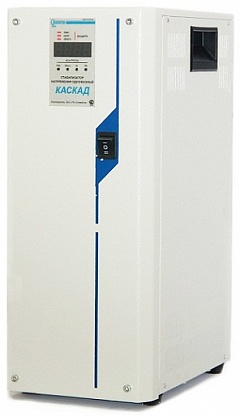

single-phase voltage stabilizers "Cascade" 4–20 have the general construct for installation on a floor and differ in the rated power and ranges of correction of tension;
connection to a network and loading to be made through the terminal clips located under the top panel of the stabilizer;
inclusion of loading and its electronic protection is carried out by means of the magnetic actuator (relay) and the corresponding scheme of management;
on the front panel there are indicators "NETWORK", "PROTECTION", "OVERLOAD" intended for control and the alarm system about working hours of system;
Case elements are made of metal and painted by a wearproof polymeric covering. Color gray RAL 7035.
Operation is made in the heated rooms at ambient temperature from +1 to +35 °C and relative humidity to 80% (at +25 °C).

Street execution

On request of the customer the CASCADE stabilizer can be installed in a case for external installation.
During the work of the equipment in various climatic conditions if necessary, in a case the heating conditioning module allowing to operate the equipment in the range of temperatures from-40 of 0C up to +40 0C is installed, thus the product is established on a socle 200 mm high.

Stabilizer model	Rated power, kVA (phase current, A)	Range of entrance tension at an output tension 220 (-20%, +10%),V	Range of entrance tension at an output tension 220±2,5%,V	Correction accuracy, %	Weight, kg	Overall dimensions, mm
SN-О-4	4,0 (18)	124-300	152-288	+/-2,5	35	215х485х300
SN-О-5	5,0 (23)	135-298	167-273	+/-2,5	35	215х485х300
SN-О-6	6,0 (27)	139-293	173-267	+/-2,5	35	215х485х300
SN-О-7	7,0 (32)	145-284	180-260	+/-2,5	35	215х485х300
SN-О-8	8,0 (36)	149-280	185-255	+/-2,5	35	215х485х300
SN-О-10	10,0 (45)	139-293	173-267	+/-2,5	35	215х485х300
SN-О-12	12,0 (54)	145-284	180-260	+/-2,5	44	215х485х300
SN-О-15	15,0 (68)	147-282	179-262	+/-2,5	44	215х485х300
SN-О-17	17,0 (77)	150-278	183-258	+/-2,5	44	215х485х300
SN-О-20	20,0 (91)	153-273	187-254	+/-2,5	44	215х485х300
