Electromechanical Saturn

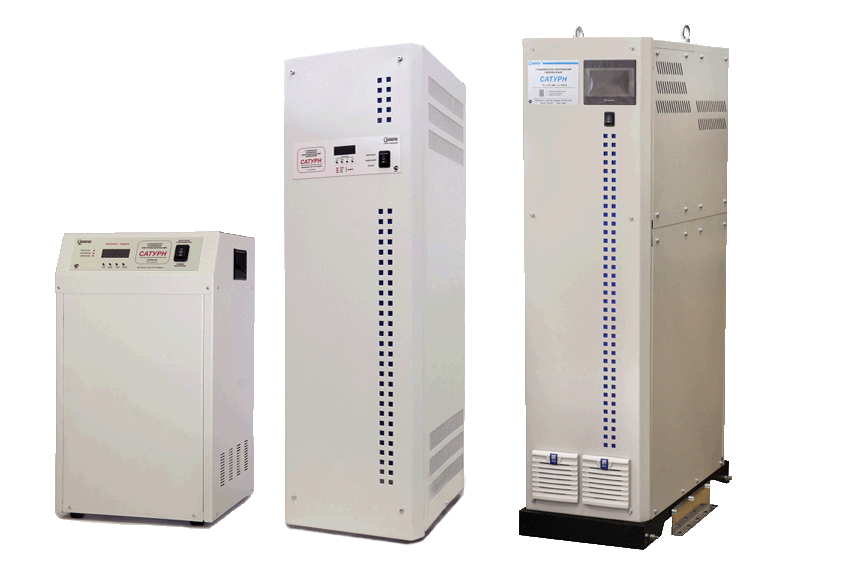

Single-phase stabilizers "Saturn"

Are made in 3 options of execution depending on power:

* models with an expanded range of entrance tension

VOLTAGE STABILIZERS ELECTROMECHANICAL SATURN

High-precision stabilizers – the accuracy of correction of ±1%, doesn't depend on the connected power and entrance tension
Adjustment of tension – smooth
Maintains overloads of 200% within 100 seconds, 400% within 10 seconds and 1000% within 2 seconds
Works with 10-fold starting currents
Allows to connect the equipment directly to a network thanks to system Baypas
The minimum wear mechanical parts due to lack of brush knot of the transformer in a chain of loading and its work with small currents
Ensures correct functioning at power supply from a network or the generator
The electric drive of Japanese firm Mitsubishi provides high speed
The main component of the stabilizer – the high-quality autotransformer of the German company TTW
The Saturn stabilizer controls parameters of a network of 3200 times a second and provides instant reaction to fluctuations of tension
НLow noisiness of the stabilizer thanks to natural ventilation and lack of the fan
Sertifitskation according to GOST
All stabilizers undergo multi-stage testing in quality department
Warranty period – 24 months

The autotransformer with the servo-driver compensates sharp fluctuations of tension.
It is a switching element and regulates tension on primary winding of the transformer.
High reloading ability (at the Saturn stabilizer of 200% within 100 seconds, 400% within 10 seconds and 1000% – 2 seconds) allows to choose a voltage stabilizer on value of average power of the protected equipment, but not on the maximum peak power.
The electromechanical single-phase stabilizer differs in smooth working off of splashes/sags of tension, high precision of stabilization 220 ± in 1% (218-222 V), the defined watching system the servo-driver autotransformer.
High speed of working off of indignation – it is strict when using of the adjustable autotransformer suitable on technical characteristics and the servo-driver.
The distorting elements are absent, respectively, the form of tension doesn't change.
Insignificant dependence on network frequency.
The stabilizer works with zero loading.
Phases are stabilized independently, in case of need the stabilizer eliminates a distortion of phases.
Almost silent work thanks to the servo-driver.
It is recommended for operation in heavy industrial networks as the switching element (brush) doesn't perceive a hindrance and distortion of a form of current and tension.
Compact overall dimensions of the stabilizer.
