Power 14-140 kva
- Correction accuracy +/-1%
- Maintains overloads of 200% - 100 sec.; 400% - 10 sec., 1000% - 2 sec.
- Works with 10-fold starting currents – you don't need to buy the stabilizer with a reserve power
- System Bypass
- Guarantee - 2 years
– various control systems (fire, security alarm system)
– medical and laboratory equipment
– information systems of various value (server, database)
– machines
– construction objects
Saturn stabilizers provide:
System of protection of loading
Security system provides:

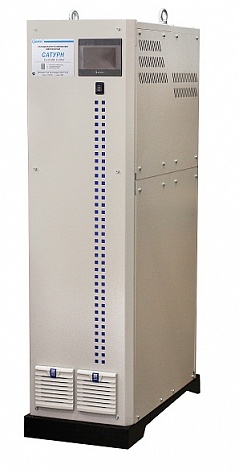

Single-phase Saturn stabilizers with power from 50 to 140 kVA are issued with the touch control panel.
- smooth adjustment of tension in the wide range with high accuracy ± 1%, without rupture of a phase, without emission of hindrances in a network and distortions of a form of the feeding tension that allows to work both with strong-inductive (electric motors), and with strong-capacitor loadings (the equipment of sunbeds);
- unlike the majority of voltage stabilizers of other firms, ensures correct functioning at supply with the diesel or petrolgenerator at the expense of a high noise stability of measuring chains;
- protection of the electronic equipment against pulse retension;
- indication of parameters of a network;
- full passport capacity in all declared range of tension.
System of protection of loading
- shutdown of loading at accident of a network, at tension deviation at the stabilizer exit out of limits, safe for loading, with the subsequent automatic inclusion at restoration of a network;
- protection of loading against the pulse retension caused by lightning discharges, transition processes in a network, the welding equipment etc.
Security system provides:
- shutdown of a voltage stabilizer at an overload and short circuit;
- control of temperature in the block and shutdown at an overheat;
- the analysis of parameters of a network and the test of system at start.
Single-phase Saturn stabilizers with power from 50 to 140 kVA are issued with the touch control panel.
Table of technical characteristics
|
Stabilizer model |
Rated power, kVA (phase current, A) |
Range of entrance tension at exit 220 (-20%, +10%), V |
Range of entrance tension at exit 220±1%, V |
Correction accuracy, % |
Weight, kg |
Overall dimensions, mm |
| SNE-О-14* | 13,8 (63) | 108–320 | 134-306 | ±1 | 115 | 330х1005х380 |
| SNE-О-17* | 17,6 (80) | 117–316 | 144–296 | ±1 | 125 | 330х1005х380 |
| SNE-О-20* | 22,0 (100) | 126–304 | 157–282 | ±1 | 135 | 330х1005х380 |
| SNE-О-25 | 27,5 (125) | 133–295 | 167–273 | ±1 | 130 | 330х1005х380 |
| SNE-О-30 | 30,0 (135) | 137–291 | 171–269 | ±1 | 130 | 330х1005х380 |
| SNE-О-33 | 33,0 (150) | 140–288 | 174–266 | ±1 | 130 | 330х1005х380 |
| SNE-О-40 | 40,0 (180) | 146–280 | 182–258 | ±1 | 140 | 330х1005х380 |
| SNE-О-44 | 44,0 (200) | 147–278 | 184–256 | ±1 | 140 | 330х1005х380 |
| SNE-О-50 | 50,6 (230) | 149-278 | 187-253 | ±1 | 150 | 330х1005х380 |
| SNE-О-55 | 55,0 (250) | 152-275 | 189-250 | ±1 | 150 | 330х1005х380 |
| SNE-О-60 | 60,5 (275) | 154-273 | 192-248 | ±1 | 150 | 330х1005х380 |
| SNE-О-50* | 50,6 (230) | 130-304 | 162-280 | ±1 | 260 | 330х1200х610 |
| SNE-О-60 | 60,5 (275) | 136-296 | 169-272 | ±1 | 260 | 330х1200х610 |
| SNE-О-70 | 70,4 (320) | 141-290 | 174-266 | ±1 | 260 | 330х1200х610 |
| SNE-О-80 | 77,0 (350) | 143-287 | 177-263 | ±1 | 260 | 330х1200х610 |
| SNE-О-90 | 88,0 (400) | 147-282 | 181-259 | ±1 | 260 | 330х1200х610 |
| SNE-О-100 | 100,0 (450) | 150-278 | 185-255 | ±1 | 260 | 330х1200х610 |
| SNE-О-110 | 110,0 (500) | 152-275 | 188-252 | ±1 | 260 | 330х1200х610 |
| SNE-О-120 | 121,0 (550) | 154-272 | 190-250 | ±1 | 280 | 330х1200х610 |
| SNE-О-140 | 138,6 (630) | 156-269 | 193-247 | ±1 | 280 | 330х1200х610 |
